Micro Centrifuge - 726-16100
- RPM/RCF 16000/20600xg
- Temp. Range -20°C ~ 40°C
- Maximum Capacity 6 x 100 ml
Detail:

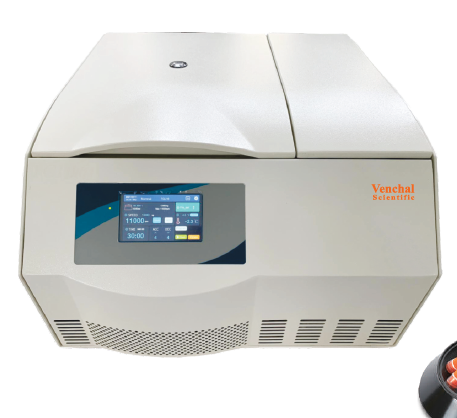

Micro-Centrifuge
- RPM/RCF 16000/20600xg
- Temp. Range -20°C ~ 40°C
- Maximum Capacity 6 x 100 ml
Features:
- Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.
- Imported compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control..
- Microprocessor control, touch screen, LCD touch screen display which indicates the temperature, speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.
- 100 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
- Automatically electric lid lock, over speed, over temperature protection and imbalance protection.
- High quality steel centrifuge body , stainless steel chamber, built-in stainless steel explosion-proof protect sleeve, 3 tiers protection, safe and reliable..
- Rotor is connected to spindle by specialized spring taper sleeve, loading simple and quick, no direction
- With pre-cooling and get the ideal centrifugation result.
Specifications
|
Model No. |
726-16100 |
|
|
Max.RPM/RCF |
Fixed Angle |
16,000/20600xg |
|
Max.Capacity |
6×100 mL |
|
|
Speed Accuracy |
±20r/min |
|
|
Timer |
1~99h59min59sec |
|
|
Temp. Range |
-20 °C ~ 40°C |
|
|
Acc/Dec |
10 Kinds |
|
|
Temperature Accuracy |
±1°C |
|
|
Noise level (dB) |
< 58dB |
|
|
Power supply |
AC 220V/110V 50HZ/60HZ |
|
|
Dimension (L×W×H, mm) |
610×570×370 mm |
|
|
Weight without rotor (kg) |
82 kg |
|
|
Certificate |
CE, ISO 9001, ISO 13485 |
|
Rotors :
|
Order No. |
Rotor |
Max speed (rpm) |
Max Volume (ml) |
Max RCF (g) |
|
16100-1 |
Angle Rotor |
14000 |
4×8PCR |
12070 |
|
16100-2 |
Angle Rotor |
13000 |
6×8PCR |
16080 |
|
16100-3 |
Angle Rotor |
14000 |
8×8PCR |
13390 |
|
16100-4 |
Angle Rotor |
13000 |
12×8PCR |
17220 |
|
16100-5 |
Angle Rotor |
15000 |
30×0.5ml |
18510 |
|
16100-6 |
Angle Rotor |
14000 |
40×0.5ml |
19970 |
|
16100-7 |
Angle Rotor |
16000 |
12×1.5/2ml |
17940 |
|
16100-8 |
Angle Rotor |
15000 |
24×1.5/2ml |
20600 |
|
16100-9 |
Angle Rotor |
13500 |
30×1.5/2ml |
19340 |
|
16100-10 |
Angle Rotor |
11000 |
48×1.5/2ml |
12840 |
|
16100-11 |
Angle Rotor |
15000 |
16×5ml |
19350 |
|
16100-12 |
Angle Rotor |
14000 |
12×7ml |
16370 |
|
16100-13 |
Angle Rotor |
14000 |
6×10ml |
16460 |
|
16100-14 |
Angle Rotor |
12000 |
12×10ml |
14510 |
|
16100-15 |
Angle Rotor |
10000 |
12×15ml |
11840 |
|
16100-16 |
Angle Rotor |
5000 |
24×15ml |
3080 |
|
16100-17 |
Angle Rotor |
5000 |
30×15ml |
3830 |
|
16100-18 |
Angle Rotor |
12000 |
8×20ml |
14510 |
|
16100-19 |
Angle Rotor |
12000 |
6×30ml |
14000 |
|
16100-20 |
Angle Rotor |
11000 |
6×50ml |
13480 |
|
16100-21 |
Angle Rotor |
10000 |
6×70ml |
10810 |
|
16100-22 |
Angle Rotor |
10000 |
6×100ml |
11380 |
|
16100-23 |
Angle Rotor |
12000 |
24 pieces capillary vessel |
15800 |
|
16100-24 |
Microplate rotor |
4000 |
2×3×48 Well |
2300 |
